PVC Rigid electrical conduit

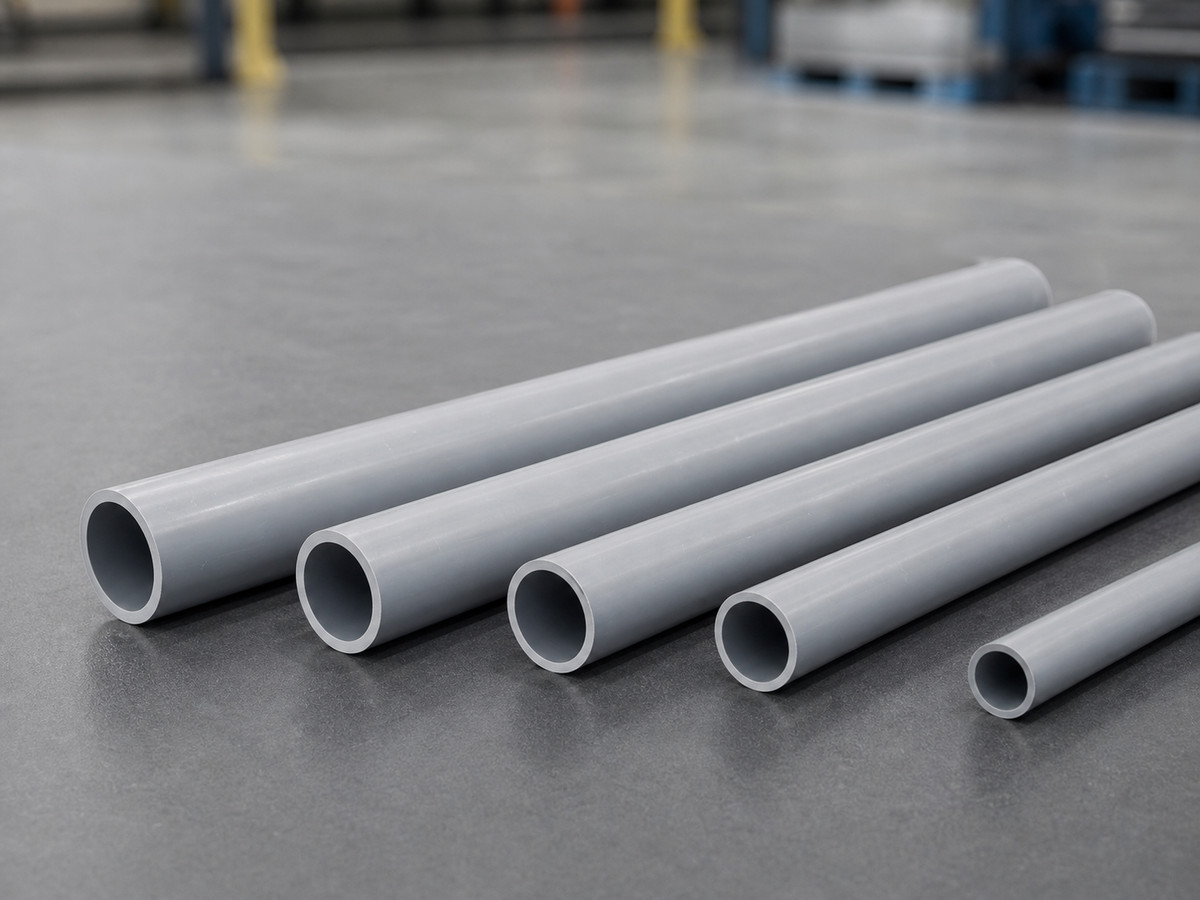

ASTM SCH 40/80 PVC Electrical Conduit

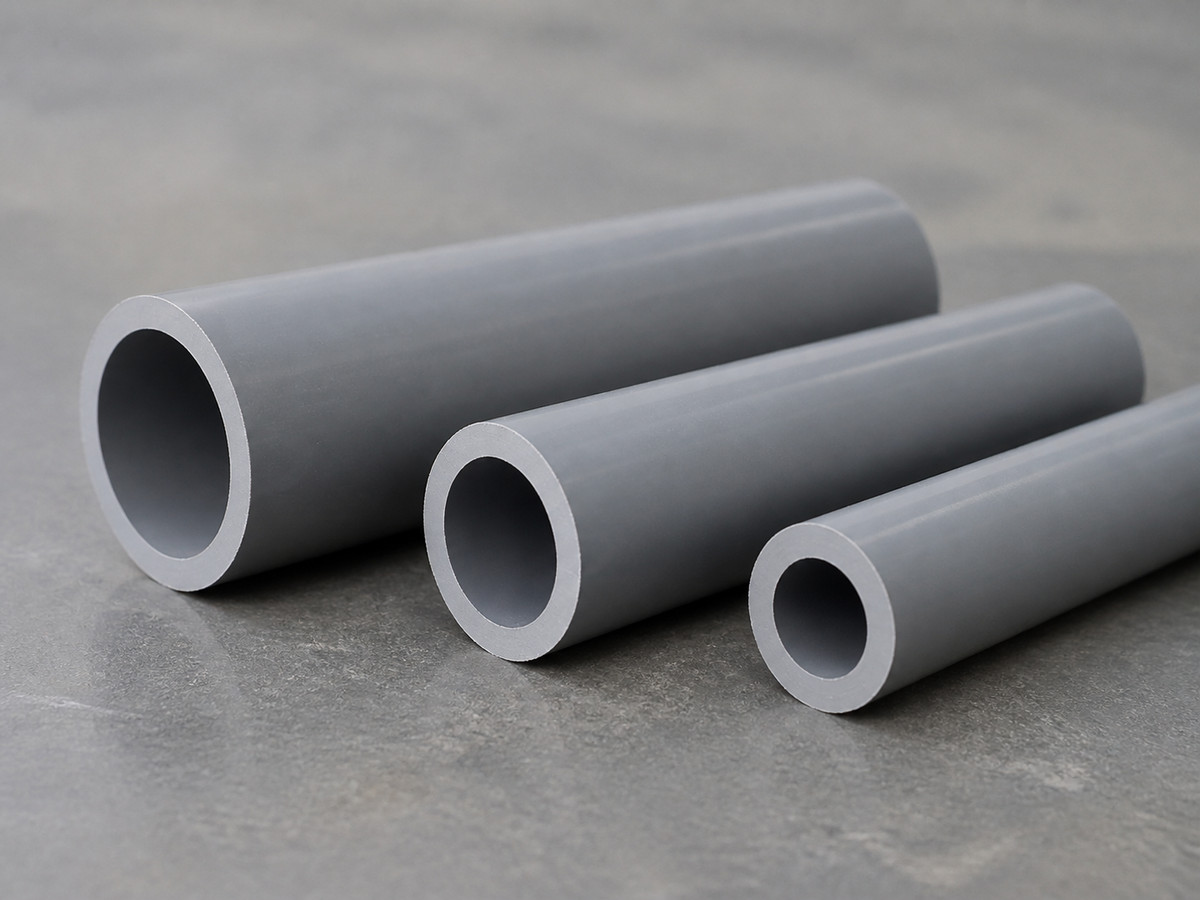

Rigid PVC electrical conduit is offered in Schedule 40 and Schedule 80 wall configurations from 1/2 to 6 inches nominal size. The schedule table defines the outside diameter and corresponding wall thickness for each size; Schedule 80 provides the heavier wall. Select the nominal size and schedule required for the installation, then confirm connection and compliance documentation in the quotation.
- 01 · Material
- PVC
- 02 · Form
- Rigid electrical conduit
- 03 · Supply basis
- Project quotation
Confirm for order: grade · dimensions · finish · quantity · destination · documentation
Technical data
Product specifications
Selected SCH 40 / SCH 80 dimensions
- 1/2 in. nominal
- OD 21.3 mm · wall 2.77 / 3.73 mm
- 1 in. nominal
- OD 33.4 mm · wall 3.38 / 4.55 mm
- 2 in. nominal
- OD 60.3 mm · wall 3.91 / 5.54 mm
Larger selected sizes
- 4 in. nominal
- OD 114.3 mm · wall 6.02 / 8.56 mm
- 6 in. nominal
- OD 168.3 mm · wall 7.11 / 10.97 mm
- Available schedules
- SCH 40 and SCH 80
One request. A complete specification.
Request a quote
Tell us the required size, grade, quantity, finish, destination and documentation. We will confirm the complete order specification before supply.
- Exact configuration confirmation
- Documentation and standards check
- Project-specific logistics
