Moulded plastic Geological core tray

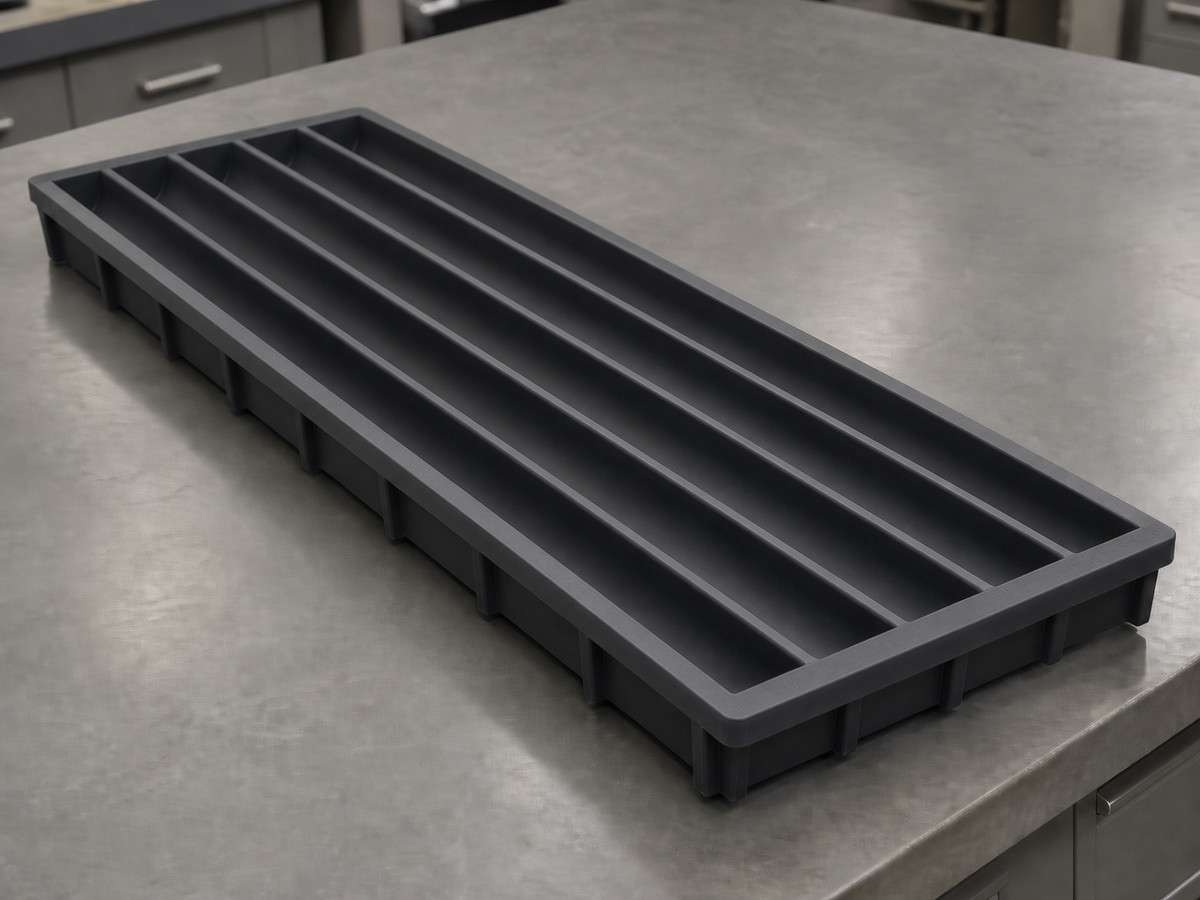

NQ / HQ / PQ Plastic Core Tray

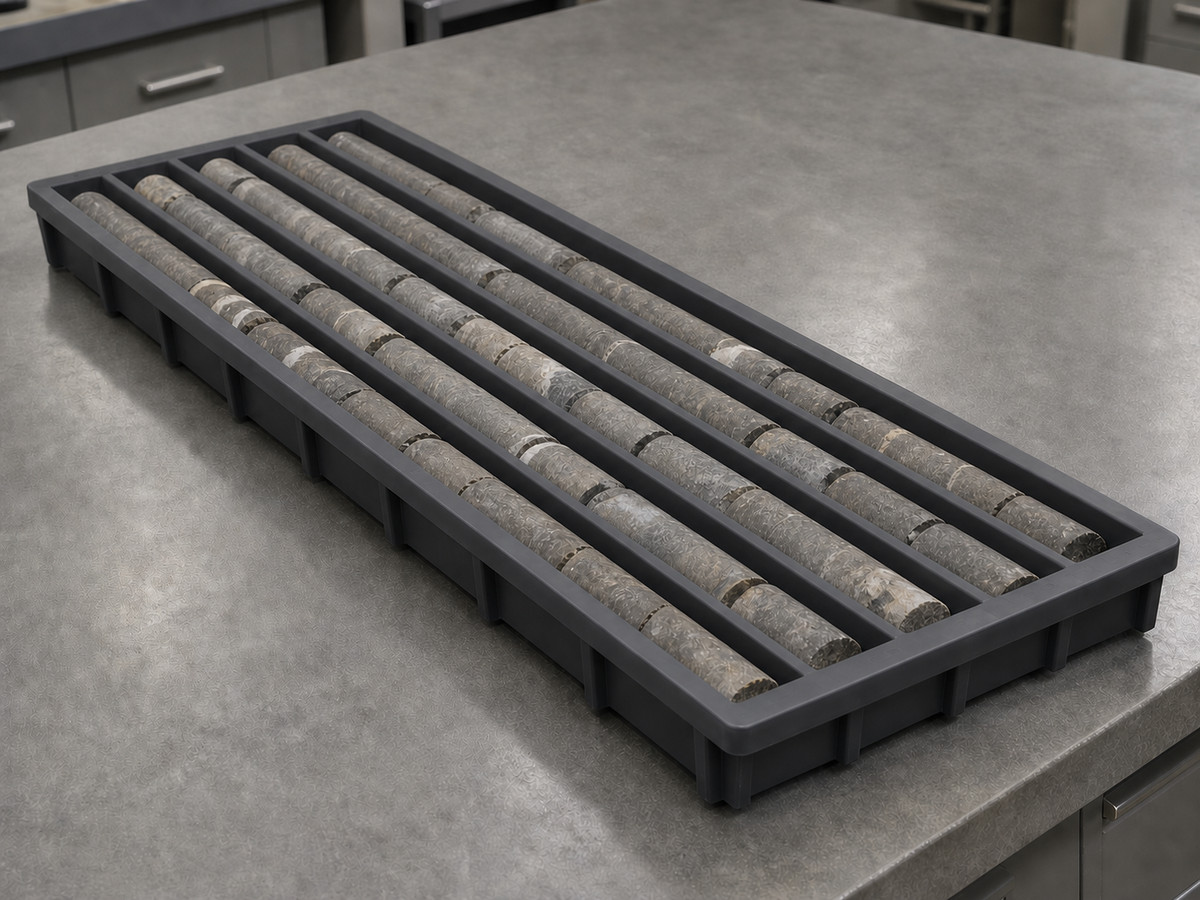

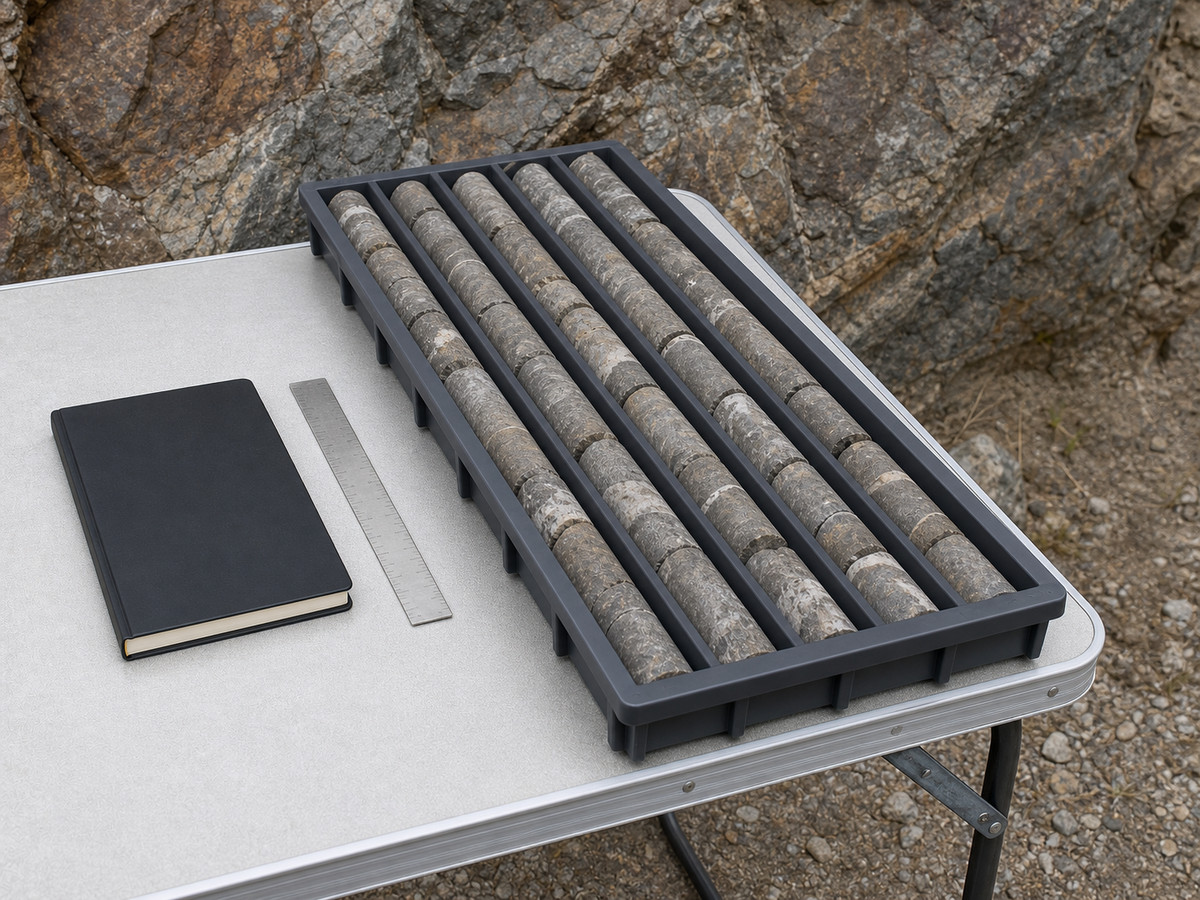

Plastic geological core trays organize drilled core samples in parallel channels sized for common BQ, NQ, HQ and PQ systems. The supplier lists 1000 mm core capacity for the selected configurations, with tray dimensions and channel diameter matched to the core system. Specify the drilling standard and required tray format so the correct channel geometry can be quoted.
- 01 · Material
- Moulded plastic
- 02 · Form
- Geological core tray
- 03 · Supply basis
- Project quotation
Confirm for order: grade · dimensions · finish · quantity · destination · documentation
Technical data
Product specifications
NQ & BQ tray options
- NTW–NQ core length
- 1000 mm
- NTW–NQ core diameter
- 59 mm
- NTW–NQ tray
- 1070 × 540 × 63 mm
- BQ core length
- 1000 mm
- BQ core diameter
- 48 mm
- BQ tray
- 1075 × 385 × 59 mm
HQ & PQ dedicated options
- HQ core length
- 1000 mm
- HQ core diameter
- 66 mm
- HQ tray
- 1075 × 385 × 80 mm
- PQ core length
- 1000 mm
- PQ core diameter
- 94 mm
- PQ tray
- 1070 × 490 × 94 mm
One request. A complete specification.
Request a quote
Tell us the required size, grade, quantity, finish, destination and documentation. We will confirm the complete order specification before supply.
- Exact configuration confirmation
- Documentation and standards check
- Project-specific logistics
