Steel Welded rock-support strap

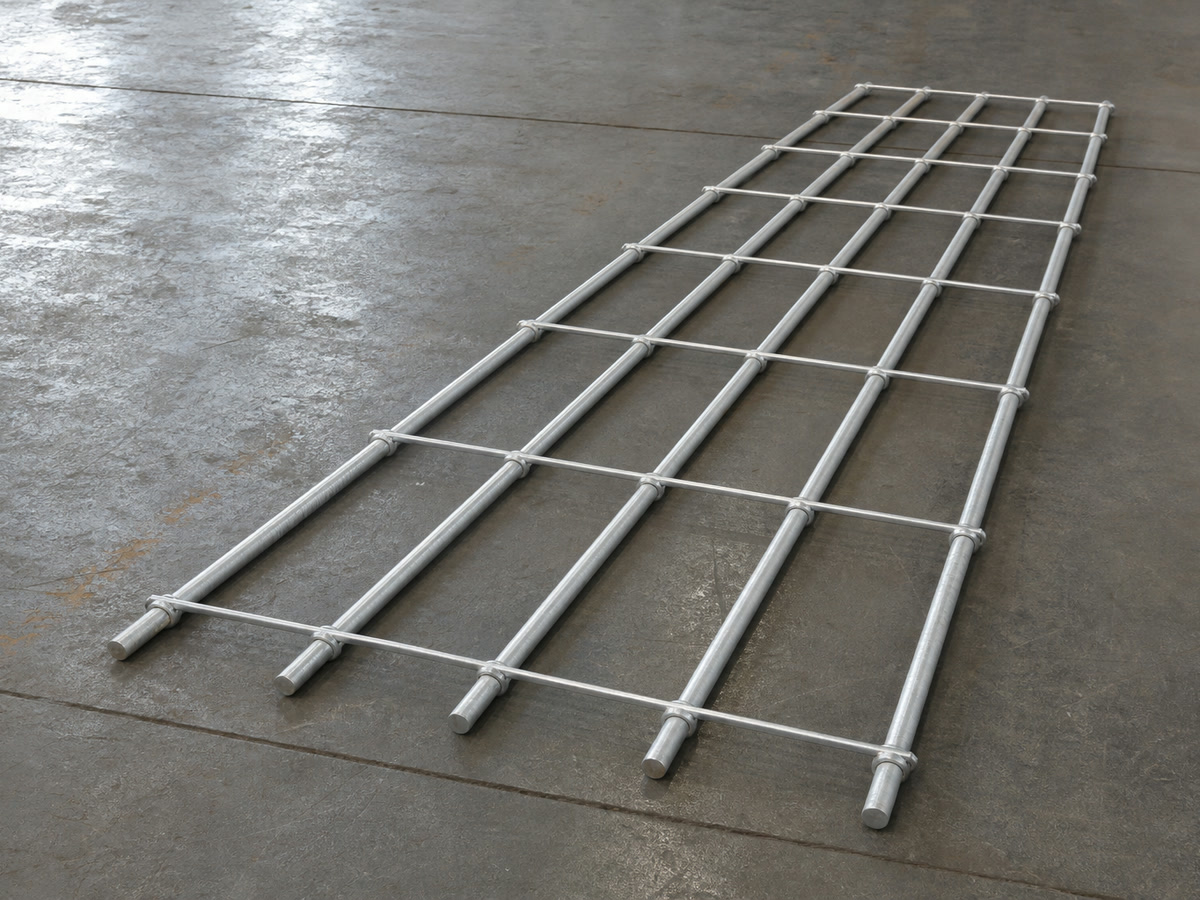

OSRO Strap Rock Support
OSRO rock-support strap is a welded steel support element formed from longitudinal main rods and transverse auxiliary rods. Standard references include 300 mm width and lengths of 2, 5.5 or 6 m, with customizable geometry and optional hot-dip galvanizing. Specify length, width, rod diameters and surface treatment for the support layout.
- 01 · Material
- Steel
- 02 · Form
- Welded rock-support strap
- 03 · Supply basis
- Project quotation
Confirm for order: grade · dimensions · finish · quantity · destination · documentation
Technical data
Product specifications
Dimensions & construction
- Length
- 2 / 5.5 / 6 m; customizable
- Width
- 300 mm; customizable
- Main-rod diameter
- 8 mm; customizable
- Auxiliary-rod diameter
- 6 mm; customizable
Strength & finish
- Typical yield strength
- 400 MPa
- Ultimate strength
- 500–700 MPa
- Surface treatment
- Hot-dip galvanizing available
One request. A complete specification.
Request a quote
Tell us the required size, grade, quantity, finish, destination and documentation. We will confirm the complete order specification before supply.
- Exact configuration confirmation
- Documentation and standards check
- Project-specific logistics
