Two-component resin Anchor cartridge

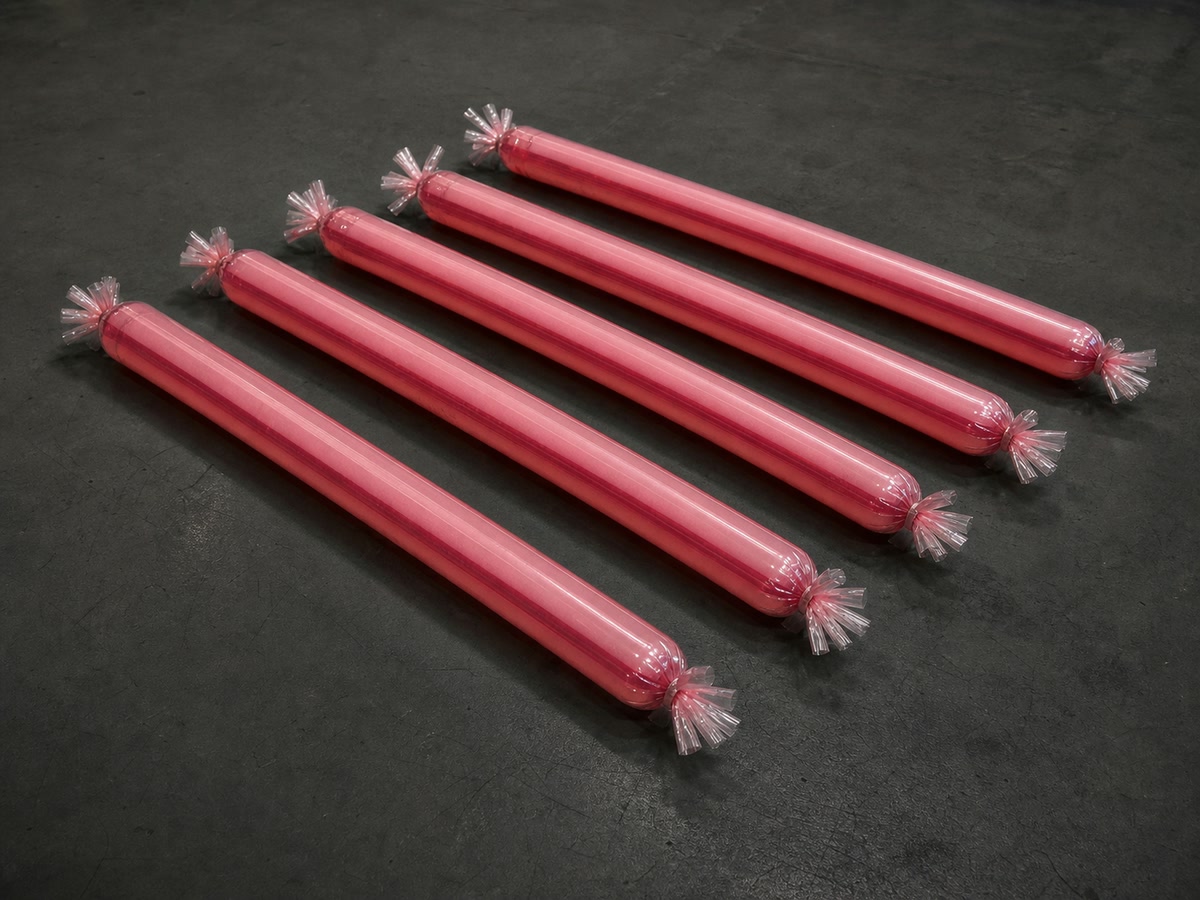

Mining Resin Anchor Cartridge
Mining resin anchor cartridges provide measured two-component resin for bonding a rock bolt inside a drilled hole. Diameters from 21 to 70 mm and lengths from 300 to 880 mm are listed, with ultra-fast, fast and medium gel-time variants. Select cartridge diameter, length and gel time to suit the drilled hole, bolt and installation sequence.
- 01 · Material
- Two-component resin
- 02 · Form
- Anchor cartridge
- 03 · Supply basis
- Project quotation
Confirm for order: grade · dimensions · finish · quantity · destination · documentation
Technical data
Product specifications
Sizes & curing
- Diameter options
- 21 / 23 / 28 / 32 / 35 / 42 / 70 mm
- Length options
- 300 / 330 / 350 / 450 / 500 / 600 / 660 / 750 / 880 mm
- Gel time
- Ultra-fast 8–25 s / fast 41–90 s / medium 91–180 s
Performance & storage
- Compressive strength
- ≥60 MPa at 22±1°C after 24 h
- Pullout resistance
- Typically ≥100 kN
- Storage
- Dry, ventilated, dark indoor storage below 25°C
One request. A complete specification.
Request a quote
Tell us the required size, grade, quantity, finish, destination and documentation. We will confirm the complete order specification before supply.
- Exact configuration confirmation
- Documentation and standards check
- Project-specific logistics
