High-carbon steel Welded wire mesh

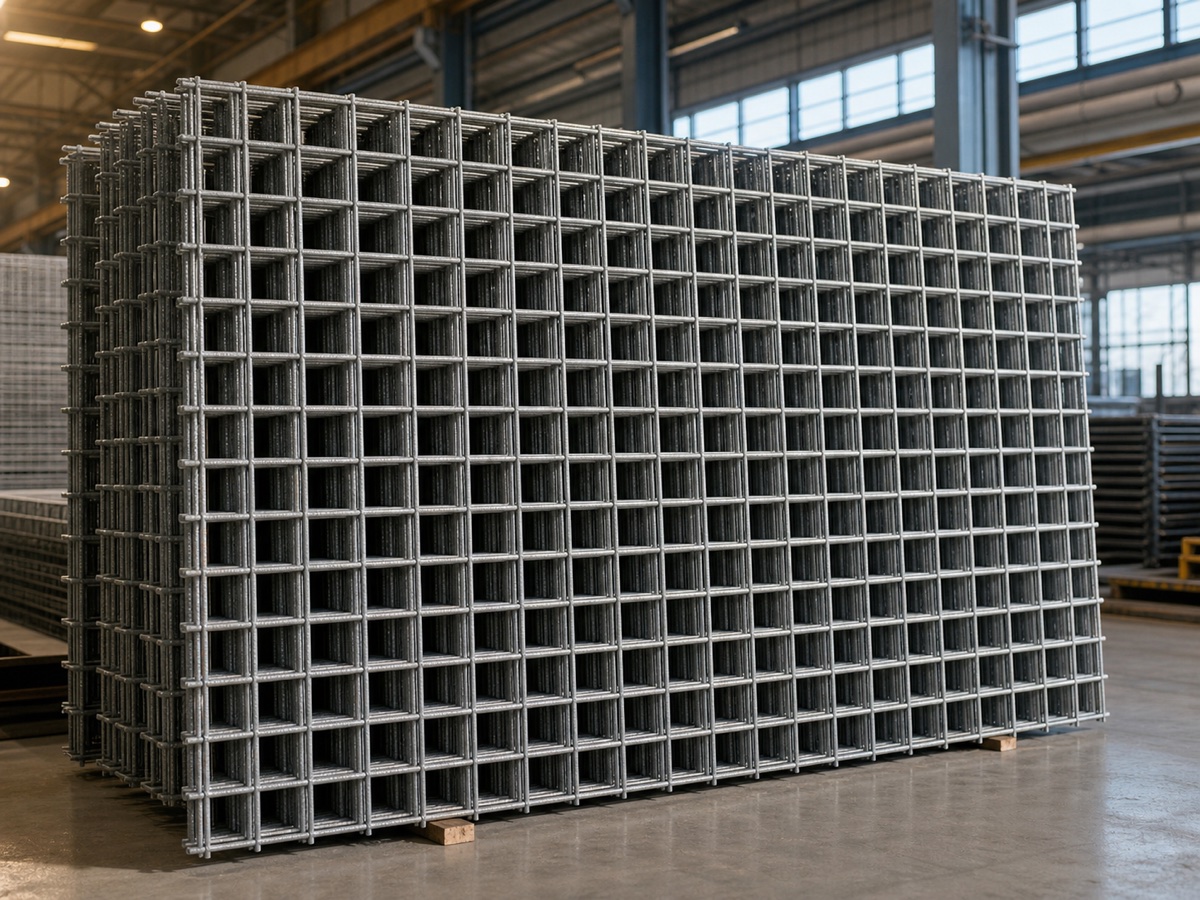

Heavy-Duty Galvanized Wire Mesh

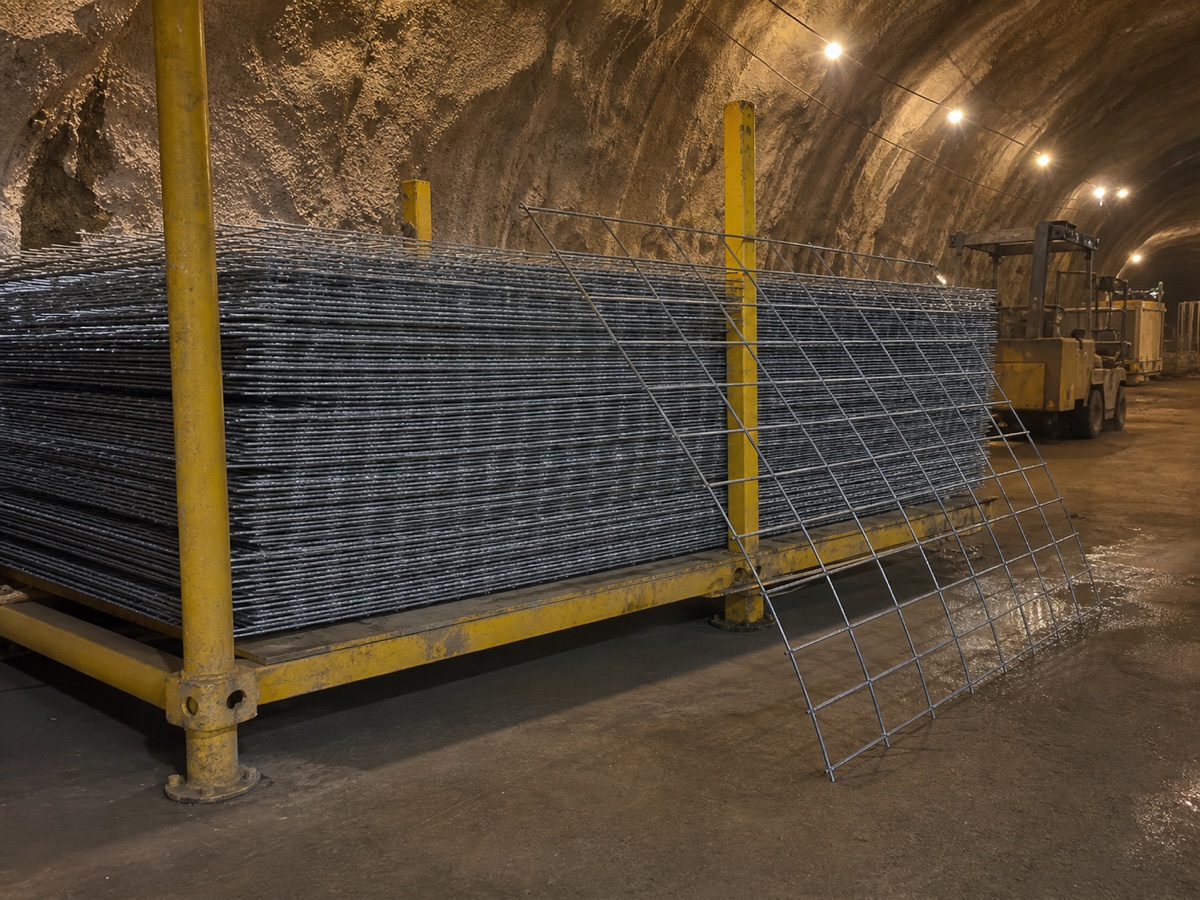

Heavy-duty galvanized wire mesh is made from high-carbon steel wires joined by resistance welding. The checked page lists wire diameters from 3.0 to 6.0 mm, square, rectangular and diamond aperture options, and standard panel widths and lengths. The exact mesh pattern, panel size, coating, edge treatment and required load case are confirmed for each concrete or ground-support project.
- 01 · Material
- High-carbon steel
- 02 · Form
- Welded wire mesh
- 03 · Supply basis
- Project quotation
Confirm for order: grade · dimensions · finish · quantity · destination · documentation
Technical data
Product specifications
Mesh & panel sizes
- Wire diameter
- 3.0 / 3.5 / 4.0 / 5.0 / 6.0 mm
- Square apertures
- 50×50 / 80×80 / 100×100 mm
- Other apertures
- Rectangular 80×100 mm · diamond 40×40 / 50×50 / 60×60 mm
- Panel sizes
- Widths 0.8 / 1.0 / 1.2 m · lengths 2.0 / 2.4 / 3.0 / 6.0 m · custom available
Construction
- Material
- High-carbon steel
- Joining method

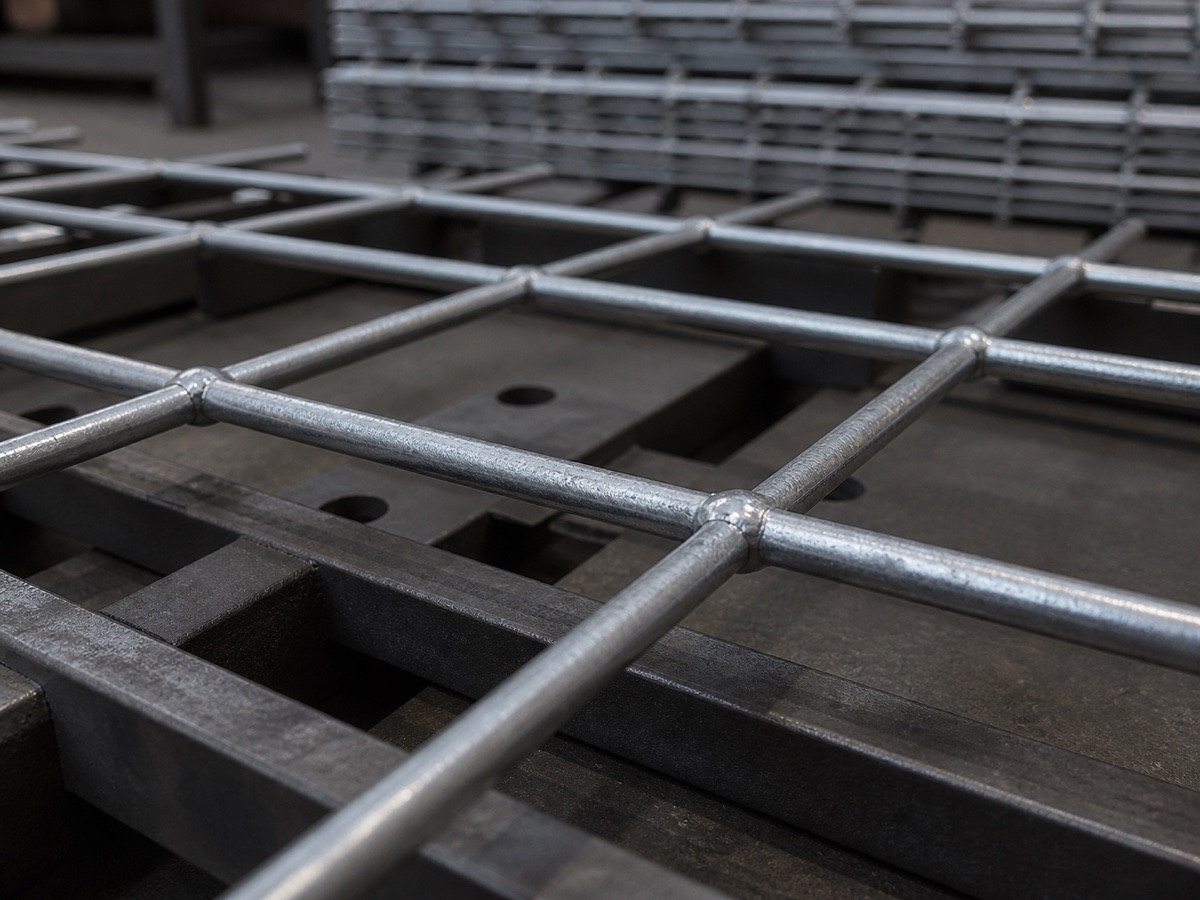

- Resistance welded at each node
